Electro Technical Calibration
In Electrical, customers conducting testing/ measurements are dealing with people’s safety and they are carrying an extended duty of care not only ensuring that the equipment’s are safe, but that it is fit for purpose and not posing serious risk to others and public in general.
Electrical instrument calibration involves the use of precise devices that evaluate the performance of key properties for other devices called “Unit Under Calibration” (UUCs). Because these precise devices have thoroughly known performance characteristics compared to the UUC, performance evaluation and/or calibration adjustment of the UUC to identify or minimize errors is possible.

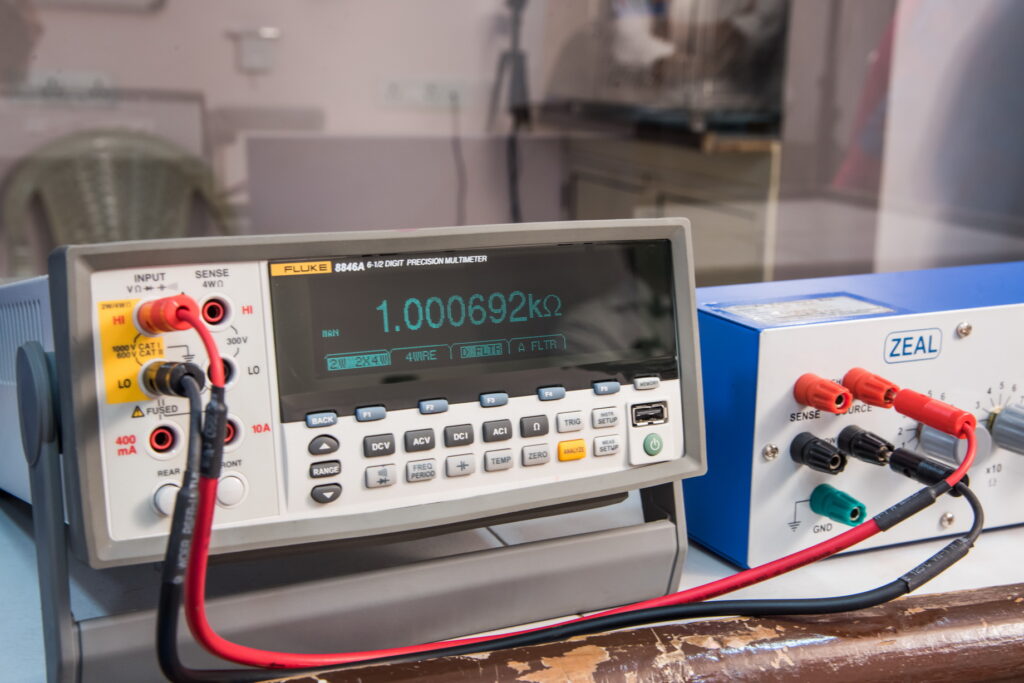

Our Electro-technical calibration services are equipped to calibrate almost every electrical parameter covering basic working level instruments like ammeter / voltmeter to Multifunction calibrators & 6½ digit multimeters.
What We Offer
- Multifunction Calibrator / Meter- AC/ DC Voltage, AC/DC Current – Resistance, Frequency, Capacitance – Inductance, Power, Current , Temperature Simulation
- Multimeter / Clamp Meter- 3 ½ to 5 ½ digits
- Shunts – AC/DC current up to 120A
- Megger/ Insulation Tester- 10 TΩ (Up to 5 kV)
- Tachometer 80 to 99999 rpm
- Timer/Stopwatch- Up to 24 hrs
- Single Phase Power Analyser- AC/ DC Volts, Current and Power Factor
- Single/ Three Phase Energy Meter- 60V to 240V /0.2A to 5A (12W to 4.8 kW)
